MIL-DTL-46506E
SEE NOTE b
(See 3.15.1)
To determine outside dimensions:
To inside length - add twice the thickness of cleats and twice thickness of end boards.
To inside width - add 1-1/8" (includes closure on side of box).
To inside depth - add 1 inch.
NOTES:
a. 1/2 inch when w equals 1-3/4 inches, for greater widths b equals 5/8 inches
b. Nailing pattern shown for securing end boards to battens may be modified by locating top nail in
opposite row provided nails are alternated as shown. Bottom nail may be located in inner or outer row
as required.
c. 3/4 inches to 1 inch.
d. End boards project beyond edge of battens 7/8" (see 3.16) and beyond ends of battens
3/8" + 1/16"

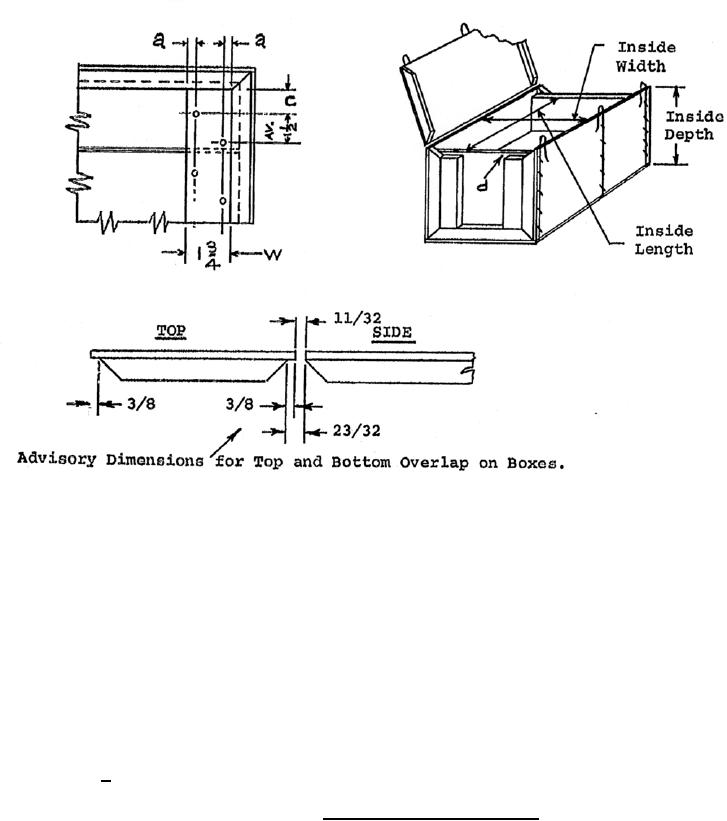

FIGURE 2. Wirebound box with end battens
21
