MIL-DTL-46506 Boxes, Ammunition Packing, Wood, WireboundThis specification covers two types and six classes of wirebound box designs intended for ammunition use \(see 6.1\). All boxes have looped closures, and are top opening. Boxes may or may not have handles made from rope or webbing. Ends may be one piece plywood.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22


MIL-DTL-46506E
(See 3.16)
Webbing : 19" long ­ specification MIL-W-17337 (see 3.18.5)

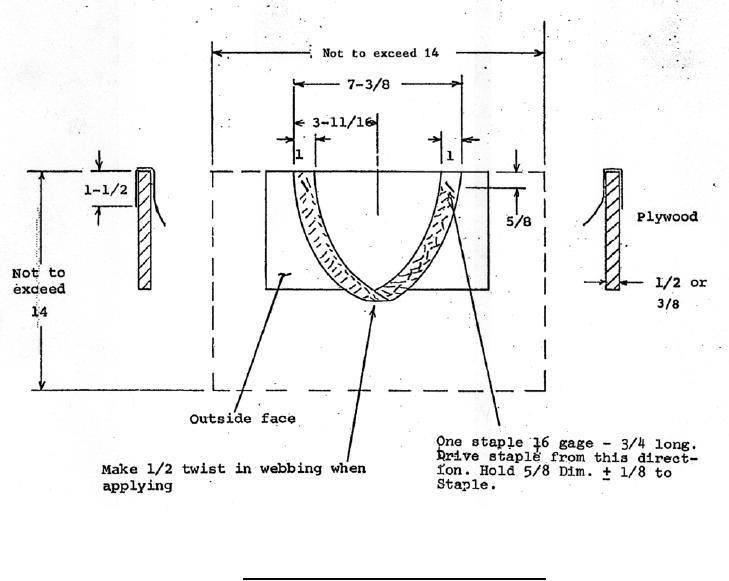

FIGURE 1B. Ends for Type II Box (with webbing handles).
20
