MIL-DTL-2439F
TYPE I, II, and III
A A MMUNITION CONTAINER BOARD, SPECIFICATION A-A-59209, AS REQUIRED TO PROVIDE
SPECIFIC DIAMETER. USE ONE OR MORE LAYERS OF EQUAL OR BETTER GRADE WITH
MINIMUM THICKNESS 0.007" TO OBTAIN SPECIFIC DIAMETER.
B 0.007" WATERPROOF ASPHALT DUPLEX KRAFT WRAPPING PAPER, SPECIFICATION PPP-B-
1055, CLASS P-1, MUST LAP NOT LESS THAN 0.0625".
(1) ENTIRE SURFACE MUST BE COATED WITH ASPHALT
C GLUE, SPECIFICATION ASTM D 4317 (SEE NOTE H)
D ASPHALT, SPECIFICATION ASTM D 449
E ALTERNATIVE ADHESIVES ADHESIVE, DEXTRIN, SPECIFICATION MIL-A-13374 OR
TACKIFIED POLYVINYL ALCOHOL ADHESIVE OR POLYVINYL ACETATE ADEHESIVE MEETING
PERFORMANCE TESTING OF ASTM D 4317
H ALTERNATIVE ADHESIVES ADHESIVE, DEXTRIN, SPECIFICATION MIL-A-13374, OR
TACKIFIED POLYVINYL ALCOHOL ADHESIVE OR POLYVINYL ACETATE ADEHESIVE MEETING
PERFORMANCE TESTING OF ASTM D 4317

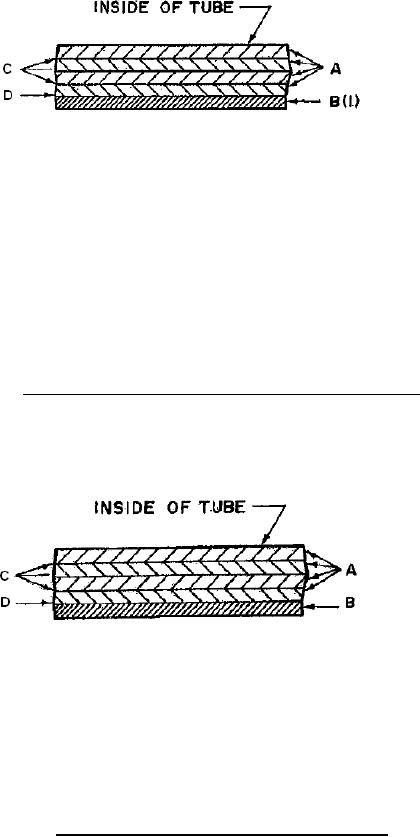

FIGURE 4. Type I, II, and III neck tube construction requirements.
TYPE IV
A A MMUNITION CONTAINER BOARD, SPECIFICATION A-A-59209, AS REQUIRED TO PROVIDE
SPECIFIC DIAMETER. USE ONE OR MORE LAYERS OF EQUAL OR BETTER GRADE WITH
MINIMUM THICKNESS 0.007" TO OBTAIN SPECIFIC DIAMETER.
B SEVEN (7) POINT LUSTERLESS BLACK KRAFT. LAP SHALL NOT BE LESS THAN 0.3125".
C GLUE, SPECIFICATION ASTM D 4317 (SEE NOTE F)
D POLYVINYL ACETATE ADHESIVE, PRODUCT NO. 53-140, SUPPLIED BY UNITED RESIN
PRODUCTS, BROOKLYN, NY, OR EQUIVALENT
E ALTERNATIVE ADHESIVES NEOPRENE LATEX BASE ADHESIVE OR POLYVINYL ACETATE
ADHESIVE MEETING REQUIREMENTS OF DRAWING 12987995
F RESIN IS APPLIED TO ALL THE OUTER SURFACES OF THE TUBE
FIGURE 5. Type IV neck tube construction requirements.
28
