MIL-DTL-2439F
INSIDE DIAMETER OF 3.39
INSIDE DIAMTER OF
INSIDE DIAMETER
INCHES AND MORE WITH 26
3 INCHES OR LESS
MORE THAN 3 INCHES
GAGE METAL ENDS
Note: All dimensions are minimum.

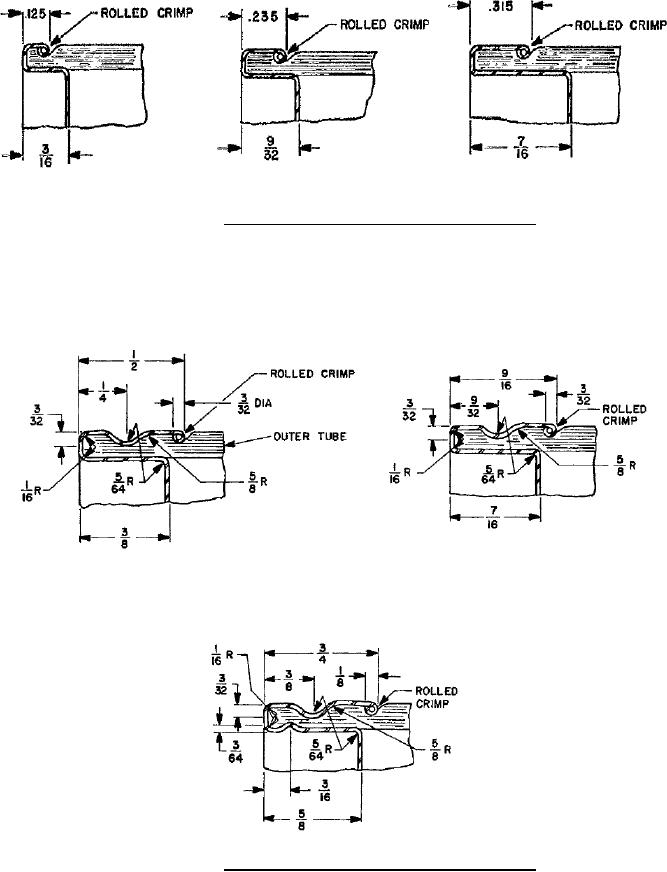

FIGURE 12. Requirements for class 1 metal end crimps.
CONTAINER WITH INSIDE DIA OF
CONTAINER WITH INSIDE DIA OF
3.40 TO 4.70 INCHES, WITH 26
3.29 INCHES OR LESS , WITH 26
GAGE METAL ENDS
GAGE METAL ENDS
CONTAINER WITH INSIDE DIA
of 4.71 INCHES OR GREATER,
WITH 26 GAGE METAL ENDS
Note: Tolerance on radii ± 0.25%, tolerance on all factional dimensions ± 1/32
FIGURE 13. Requirements for class 2 metal end crimps.
