MIL-DTL-2439F

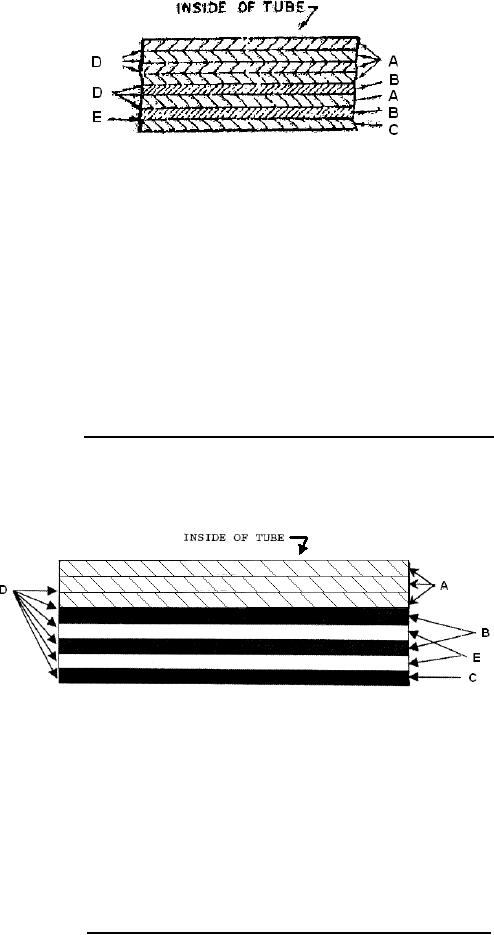

TYPE IV
A A MMUNITION CONTAINER BOARD, SPECIFICATION A-A-59209, AS REQUIRED TO PROVIDE
SPECIFIC DIAMETER. USE ONE OR MORE LAYERS OF EQUAL OR BETTER GRADE WITH
MINIMUM THICKNESS 0.007" TO OBTAIN SPECIFIC DIAMETER.
B ALUMINUM FOIL, SPECIFICATION QQ-A-1876, 0.001" THICK. FOIL MAY BE PARTIALLY
ANNEALED TEMPER WITH MAXIMUM BURSTING STRENGTH OF 45 PSI. LAP FOIL TO BE NOT
LESS THAN 0.25".
C SEVEN (7) POINT LUSTERLESS BLACK KRAFT. LAP SHALL NOT BE LESS THAN 0.3125".
D GLUE, SPECIFICATION ASTM D 4317 (SEE NOTE H)
E POLYVINYL ACETATE ADHESIVE, PRODUCT NO. 53-140, SUPPLIED BY UNITED RESIN
PRODUCTS, BROOKLYN, NY, OR EQUIVALENT
F ALTERNATIVE ADHESIVES NEOPRENE LATEX BASE ADHESIVE OR POLYVINYL ACETATE
ADHESIVE MEETING REQUIREMENTS OF DRAWING 12987995
G RESIN IS APPLIED TO ALL THE OUTER SURFACES OF THE TUBE
H ALTERNATIVE ADHESIVES ADHESIVE, DEXTRIN, SPECIFICATION MIL-A-13374, OR
TACKIFIED POLYVINYL ALCOHOL ADHESIVE OR POLYVINYL ACETATE ADEHESIVE MEETING
PERFORMANCE TESTING OF ASTM D 4317
FIGURE 2. Type IV outer and cover tube construction requirements.
TYPE V
A A MMUNITION CONTAINER BOARD, SPECIFICATION A-A-59209, AS REQUIRED TO PROVIDE
SPECIFIC DIAMETER. USE ONE OR MORE LAYERS OF EQUAL OR BETTER GRADE WITH
MINIMUM THICKNESS 0.007" TO OBTAIN SPECIFIC DIAMETER.
B POLYLAM (42.5 ±2.5 LB NATURAL KRAFT / 21 ± 7 LB LDPE / 72.5± 2.5 LB NATURAL KRAFT)
C POLYCOAT (79 ± 9 LB NATURAL KRAFT / 25 ± 5 LB BLACK POLYOLEFIN)
D GLUE, SPECIFICATION ASTM D 4317 (SEE NOTE H)
E ALUMINUM FOIL, SPECIFICATION QQ-A-1876, 0.001" THICK. FOIL MAY BE PARTIALLY
ANNEALED TEMPER WITH MAXIMUM BURSTING STRENGTH OF 45 PSI. LAP FOIL TO BE NOT
LESS THAN 0.25"
H ALTERNATIVE ADHESIVES ADHESIVE, DEXTRIN, SPECIFICATION MIL-A-13374, OR
TACKIFIED POLYVINYL ALCOHOL ADHESIVE OR POLYVINYL ACETATE ADEHESIVE MEETING
PERFORMANCE TESTING OF ASTM D 4317
FIGURE 3. Type V outer and cover tube construction requirements.
27
